Developed at IIT Bombay
3 MT Capacity
Battery-free Thermal Storage

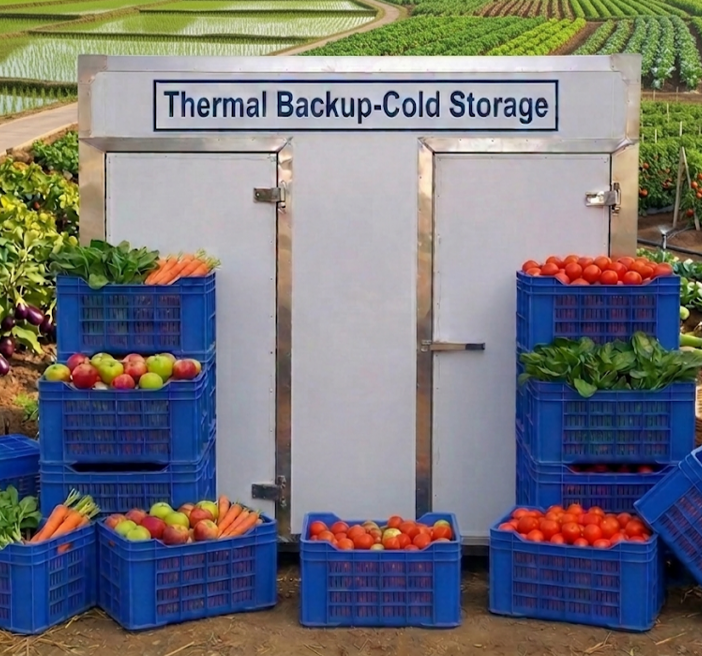

Solar Powered Vegetable Cold Storage
Sustainable farm-gate cooling solutions for off-grid & remote rural clusters
The Challenge
Post-Harvest Loss
Perishables spoil within 5-7 days due to lack of cooling, resulting in massive economic wastage.
Rural Energy Gap
Unreliable grid power in agricultural belts makes traditional cold storage unfeasible.
Price Instability
Farmers are forced into distress sales during gluts; cold storage allows market timing.
The Solution
A robust, off-grid ready cooling system engineered at IIT Bombay. It utilizes Ice-bank Thermal Backup to maintain stable temperatures (2-6°C) throughout the night and during power outages without relying on chemical batteries.
Solar Integrated
Optimized for PV power with optional hybrid grid switching.
Remote Monitoring
IoT-enabled tracking of Temperature and RH via mobile.
Pre-Cooling
High-efficiency forced air removes field heat rapidly.
Technical Snapshot
Capacity3 MT (2 Chambers)
Cooling Power1.5 TR
Solar PVIncluded Support
Loading Power~3 kWh
Staging Power~1.1 kWh
Pull-down Time~6 hrs to 2°C
Temp Range2 to 6 °C
Floor Dims10 ft x 10 ft
Installation Area~100 SqFt
Site & Infrastructure
Civil Specifications
- Foundation: Minimal "Zero Level" leveled surface.
- Floor Area: Compact 100 sq. ft. (10x10x8ft).
- Logistics: Designed for rapid farm-gate assembly.
Power & Maintenance
- Standard 230V Single Phase hybrid compatibility.
- Zero Battery maintenance; 10+ year design life.
- Self-contained refrigeration skid.
